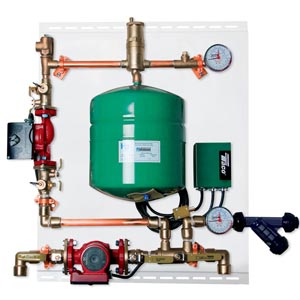

Tek-Pro Primary/Secondary 1 Zone Boiler Integrator Panel, Up to 190,000 BTU

• Powder-coated steel panel measures 34.50"W x 32.75"H x 10"D.
• Our Quick-Connect Fittings, also sold separately, make installing and connecting your boiler pipes and panels quick and easy.
• Pump isolation flanges/drains.
• Boiler union disconnects.
• Slotted holes for easy mounting.

Single zone: Primary/Secondary Panel combinations are an all-in-one system which offers piping to supply a single-zone manifold.

110841: Features two pumps. A primary recirculating pump provides continuous water circulation through the boiler, allowing all the power of the second pump to feed the single zone manifold. This panel features pressure/temperature gauges, clear "Y" strainer, high-quality air eliminator, a closed-loop expansion tank, pressure relief valve and 1" Quick Connect fittings to provide easy connections between panel and manifold. 110841 is for use with boilers that have BTU ratings of 120,000 to 190,000.
