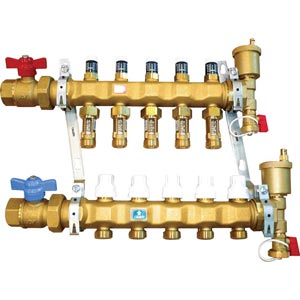

Pre-assembled Radiant Manifold 1" - 5 Out S&R

Item# 109191

Pre-assembled Distribution Manifolds for radiant heat systems are designed to optimally distribute the heating fluid in floor heating systems and ultimately improve the control of heat emission from the panels.

• These 1" manifolds ensure that the flow to each circuit is regulated precisely and also control the shut-off, venting and automatic removal of air from the system.
• Brass and stainless steel construction.
• Air eliminators on supply.
• Adjustable flow meters.
• Ball valves on supply and return.
• Serviceable end valves.
• Maximum working pressure: 150 PSI.
• Maximum air vent discharge pressure: 35 PSI.
• Working temperature range: 32°F - 180°F (0°C - 80°C).
• Flow meter scale: 1/4-2 GPM.

Our Price: $439.00 / EA

Estimate Shipping Cost | Live Help

Product Specifications

Weight	15.500
Availability	Available in 14 days
Max working pressure	150 PSI
Max air vent discharge pressure	35 PSI
Working temp range	32�F - 180�F (0�C - 80�C)
Flow meter scale	1/4-2 GPM
Outlets	3/4" male
S & R Out	5
